Overview

Dimensions

4217 × 875 × 710 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

—

Diameter

—

Count

5

RPM

—

Voltage

230 V

Phase

—

Type

—

Dimensions

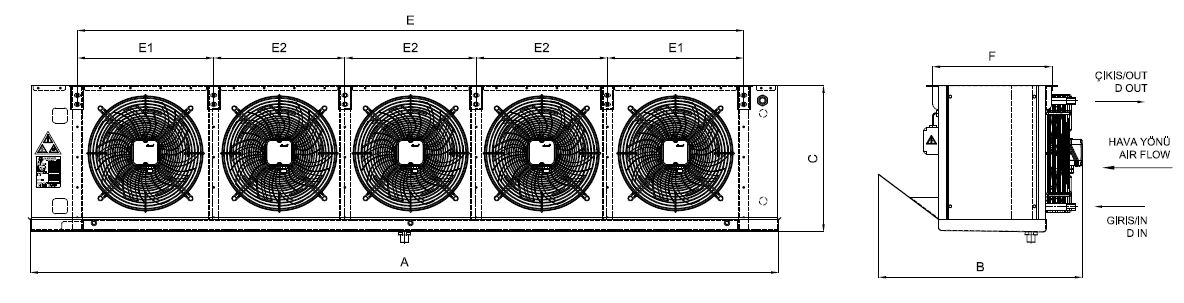

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	4217 mm
B	Sub-dimension B	875 mm
C	Sub-dimension C	710 mm
E	Sub-dimension E	3785 mm
F	Sub-dimension F	710 mm
	Length (overall)	4217 mm
	Width / Depth	875 mm
	Height (overall)	710 mm
Wt	Weight	250.0 kg
