Overview

Dimensions

1150 × 1150 × 960 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

FN050-4EK.4I.V7P1

Diameter

500 mm

Count

1

RPM

1230

Voltage

230 V

Phase

1-phase

Type

—

Dimensions

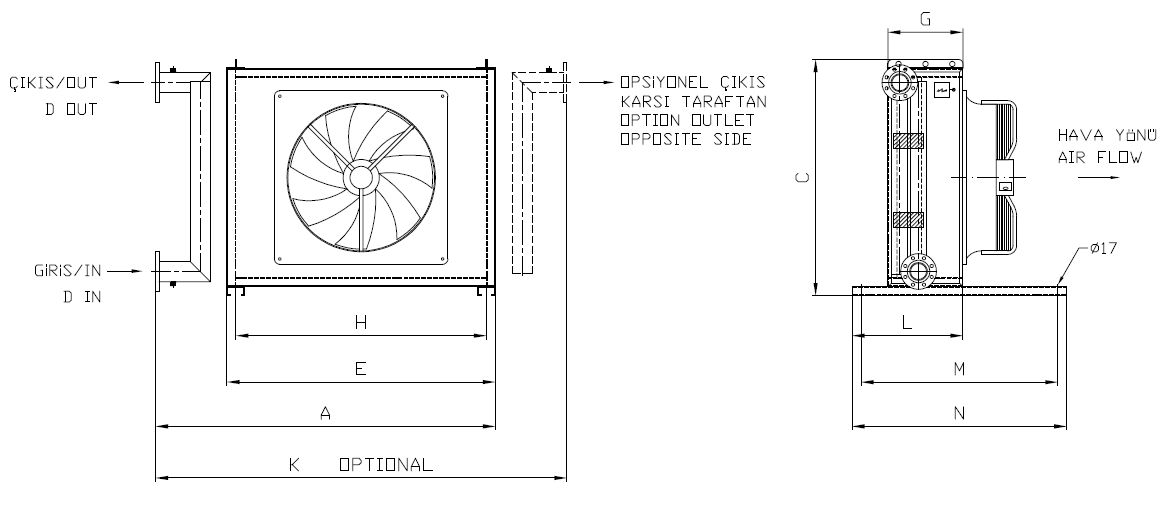

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	1150 mm
C	Sub-dimension C	930 mm
E	Sub-dimension E	900 mm
G	Sub-dimension G	450 mm
H	Sub-dimension H	800 mm
K	Sub-dimension K	1400 mm
	Length (overall)	1150 mm
	Width / Depth	1150 mm
	Height (overall)	960 mm
Wt	Weight	103.0 kg
