Overview

Dimensions

907 × 523 × 445 mm

Connections

10 mm in / 14 mm out

Materials

Copper tubes, Aluminium fins

Fan

Model

S4E400-AP02-24

Diameter

400 mm

Count

1

RPM

1430

Voltage

230 V

Phase

1-phase

Type

—

Dimensions

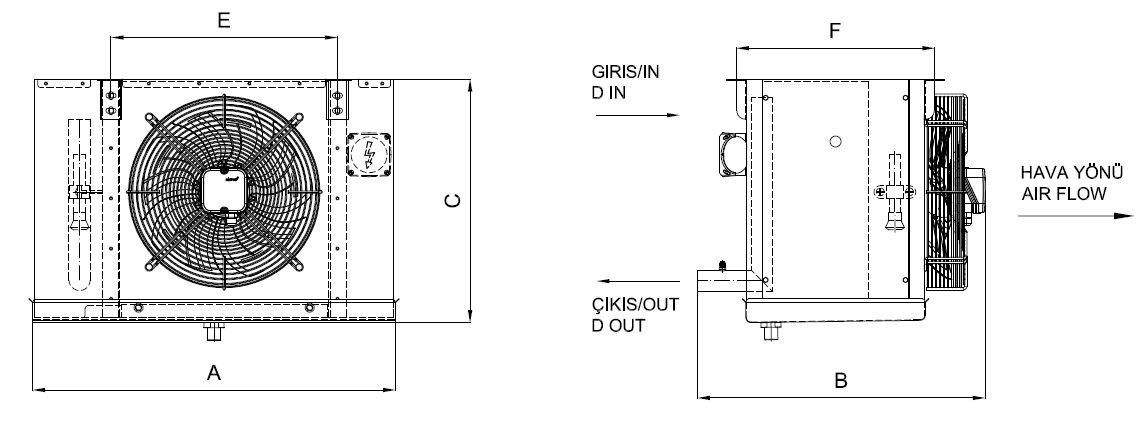

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	907 mm
B	Sub-dimension B	523 mm
C	Sub-dimension C	445 mm
E	Sub-dimension E	585 mm
F	Sub-dimension F	345 mm
	Length (overall)	907 mm
	Width / Depth	523 mm
	Height (overall)	445 mm
Wt	Weight	25.0 kg
