Overview

Dimensions

2407 × 523 × 445 mm

Connections

10 mm in / 26 mm out

Materials

Copper tubes, Aluminium fins

Fan

Model

S4E450-AO09-01

Diameter

450 mm

Count

5

RPM

1310

Voltage

230 V

Phase

1-phase

Type

—

Dimensions

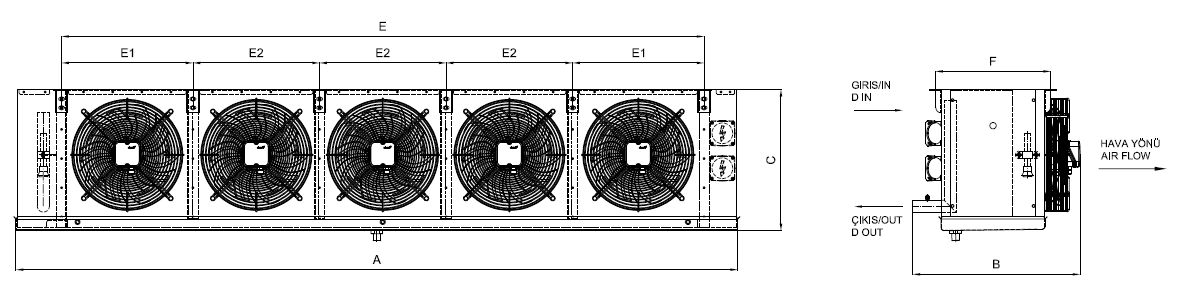

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	2407 mm
B	Sub-dimension B	523 mm
C	Sub-dimension C	445 mm
E	Sub-dimension E	2085 mm
F	Sub-dimension F	345 mm
	Length (overall)	2407 mm
	Width / Depth	523 mm
	Height (overall)	445 mm
Wt	Weight	71.0 kg
