Overview

Dimensions

1457 × 730 × 530 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

—

Diameter

—

Count

2

RPM

—

Voltage

230 V

Phase

—

Type

—

Dimensions

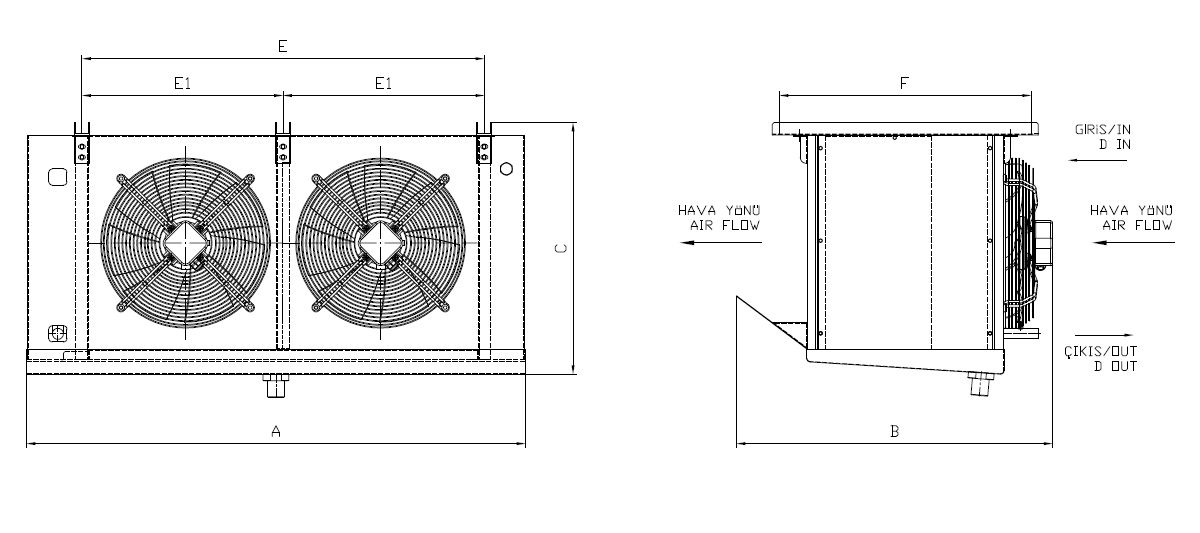

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	1457 mm
B	Sub-dimension B	730 mm
C	Sub-dimension C	530 mm
E	Sub-dimension E	1035 mm
F	Sub-dimension F	560 mm
	Length (overall)	1457 mm
	Width / Depth	730 mm
	Height (overall)	530 mm
Wt	Weight	76.0 kg
