Overview

Dimensions

1725 × 1540 × 1150 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

—

Diameter

—

Count

1

RPM

—

Voltage

400 V

Phase

—

Type

—

Dimensions

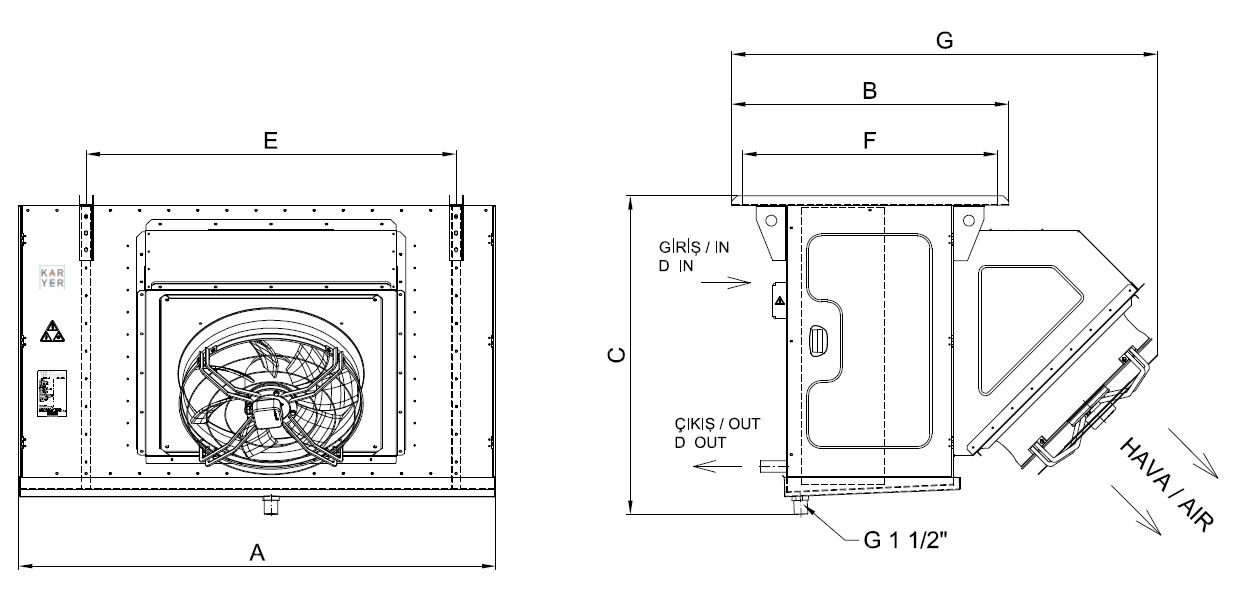

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	1725 mm
B	Sub-dimension B	1000 mm
C	Sub-dimension C	1150 mm
E	Sub-dimension E	1335 mm
F	Sub-dimension F	960 mm
G	Sub-dimension G	1540 mm
	Length (overall)	1725 mm
	Width / Depth	1540 mm
	Height (overall)	1150 mm
Wt	Weight	225.0 kg
