Overview

Dimensions

707 × 490 × 363 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

—

Diameter

—

Count

1

RPM

—

Voltage

230 V

Phase

—

Type

—

Dimensions

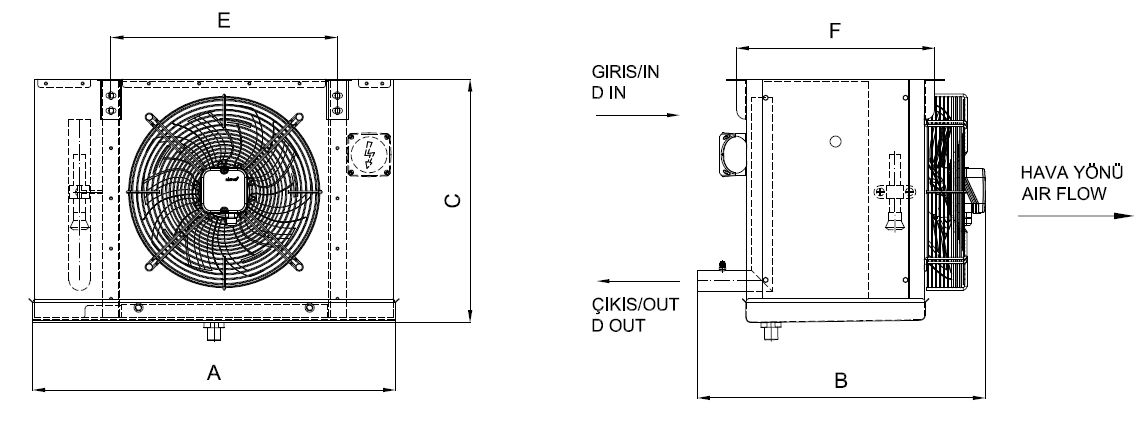

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	707 mm
B	Sub-dimension B	490 mm
C	Sub-dimension C	363 mm
E	Sub-dimension E	385 mm
F	Sub-dimension F	345 mm
	Length (overall)	707 mm
	Width / Depth	490 mm
	Height (overall)	363 mm
Wt	Weight	13.0 kg
