Overview

Dimensions

395 × 415 × 125 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

—

Diameter

—

Count

1

RPM

—

Voltage

230 V

Phase

—

Type

—

Dimensions

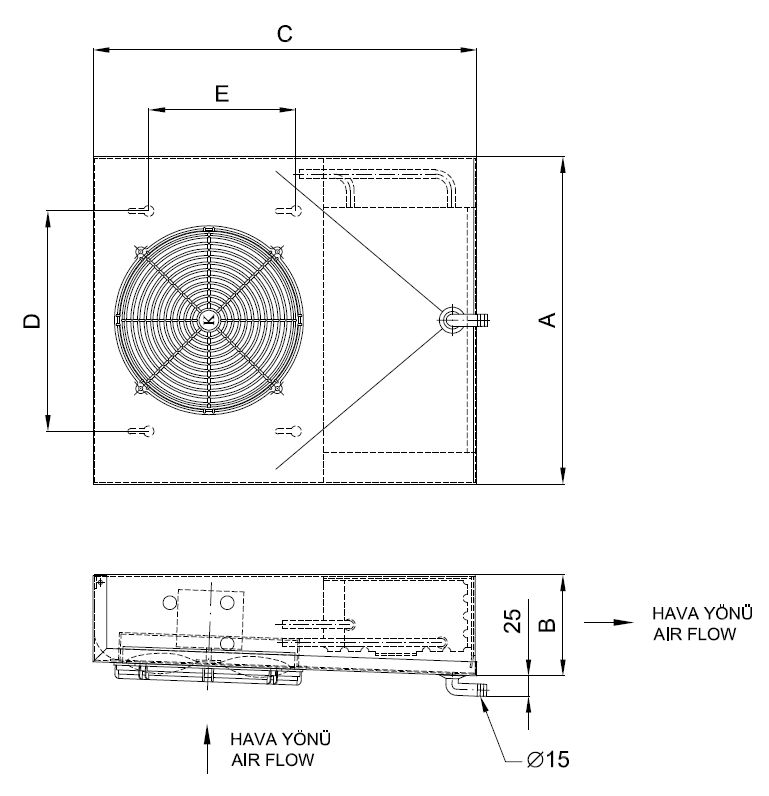

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	395 mm
B	Sub-dimension B	125 mm
C	Sub-dimension C	415 mm
D	Sub-dimension D	270 mm
E	Sub-dimension E	180 mm
	Length (overall)	395 mm
	Width / Depth	415 mm
	Height (overall)	125 mm
Wt	Weight	5.0 kg
