Overview

Dimensions

948 × 1030 × 367 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

—

Diameter

—

Count

1

RPM

—

Voltage

230 V

Phase

—

Type

—

Dimensions

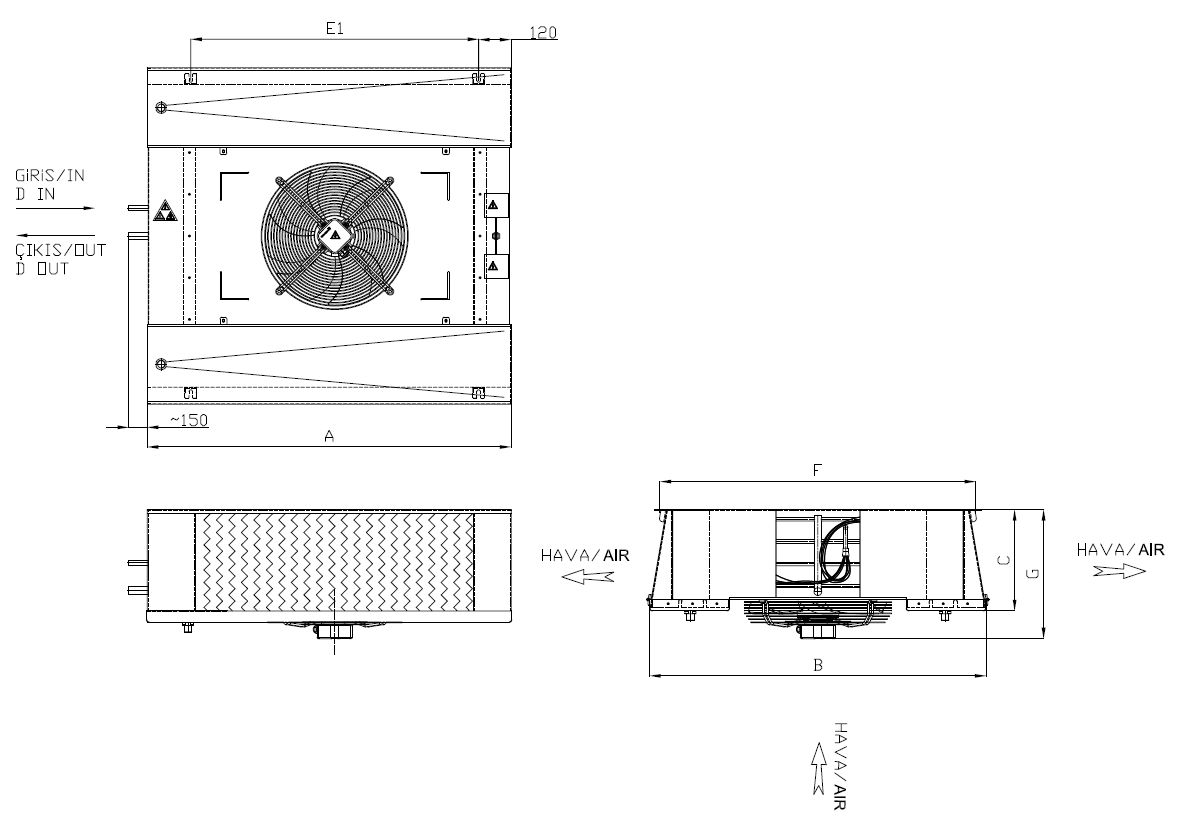

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	948 mm
B	Sub-dimension B	1030 mm
C	Sub-dimension C	285 mm
F	Sub-dimension F	985 mm
G	Sub-dimension G	367 mm
	Length (overall)	948 mm
	Width / Depth	1030 mm
	Height (overall)	367 mm
Wt	Weight	46.0 kg
