Overview

Dimensions

565 × 795 × 150 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

FN080-SDQ.6N.V7

Diameter

800 mm

Count

2

RPM

690

Voltage

230 V

Phase

3-phase

Type

—

Dimensions

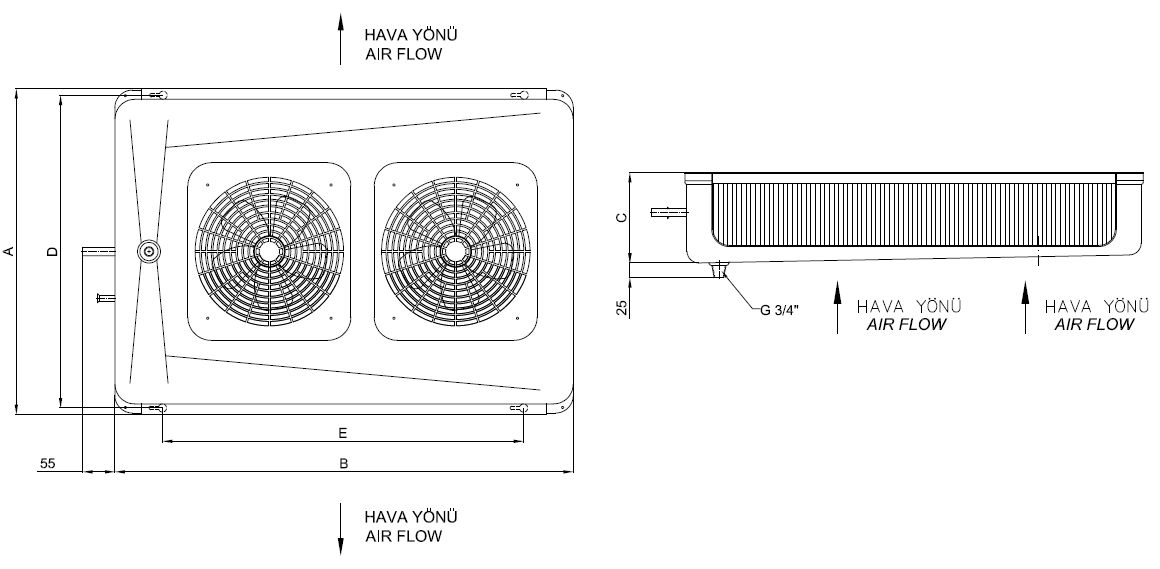

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	565 mm
B	Sub-dimension B	795 mm
C	Sub-dimension C	160 mm
D	Sub-dimension D	544 mm
E	Sub-dimension E	620 mm
	Length (overall)	565 mm
	Width / Depth	795 mm
	Height (overall)	150 mm
Wt	Weight	12.0 kg
