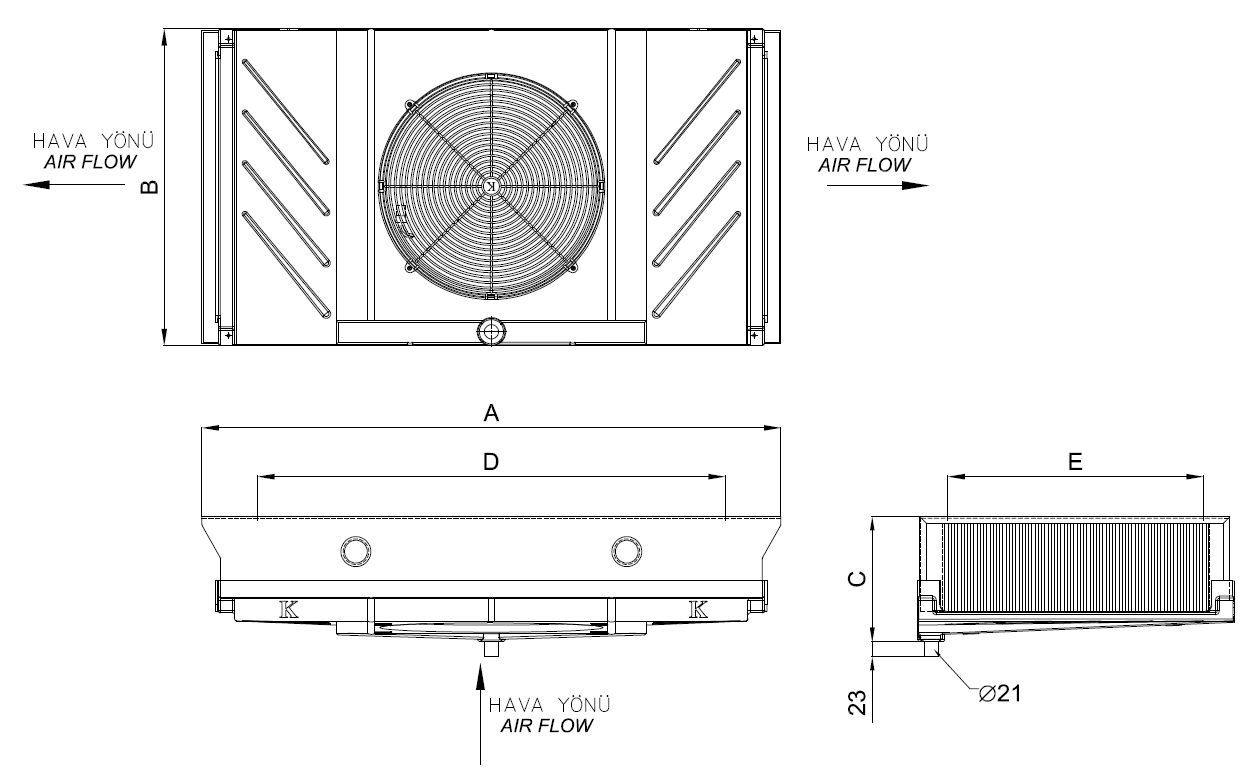

Dimension drawing β all measurements in mm
| Ref | Dimension | Value |
|---|---|---|
| A | Sub-dimension A | 645 mm |
| B | Sub-dimension B | 385 mm |
| C | Sub-dimension C | 185 mm |
| D | Sub-dimension D | 595 mm |
| E | Sub-dimension E | 262 mm |
| Length (overall) | 645 mm | |
| Width / Depth | 385 mm | |
| Height (overall) | 185 mm | |
| Wt | Weight | 8.0 kg |
