Overview

Dimensions

645 × 385 × 155 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

S4E300-AS72-37

Diameter

300 mm

Count

1

RPM

1380

Voltage

230 V

Phase

1-phase

Type

—

Dimensions

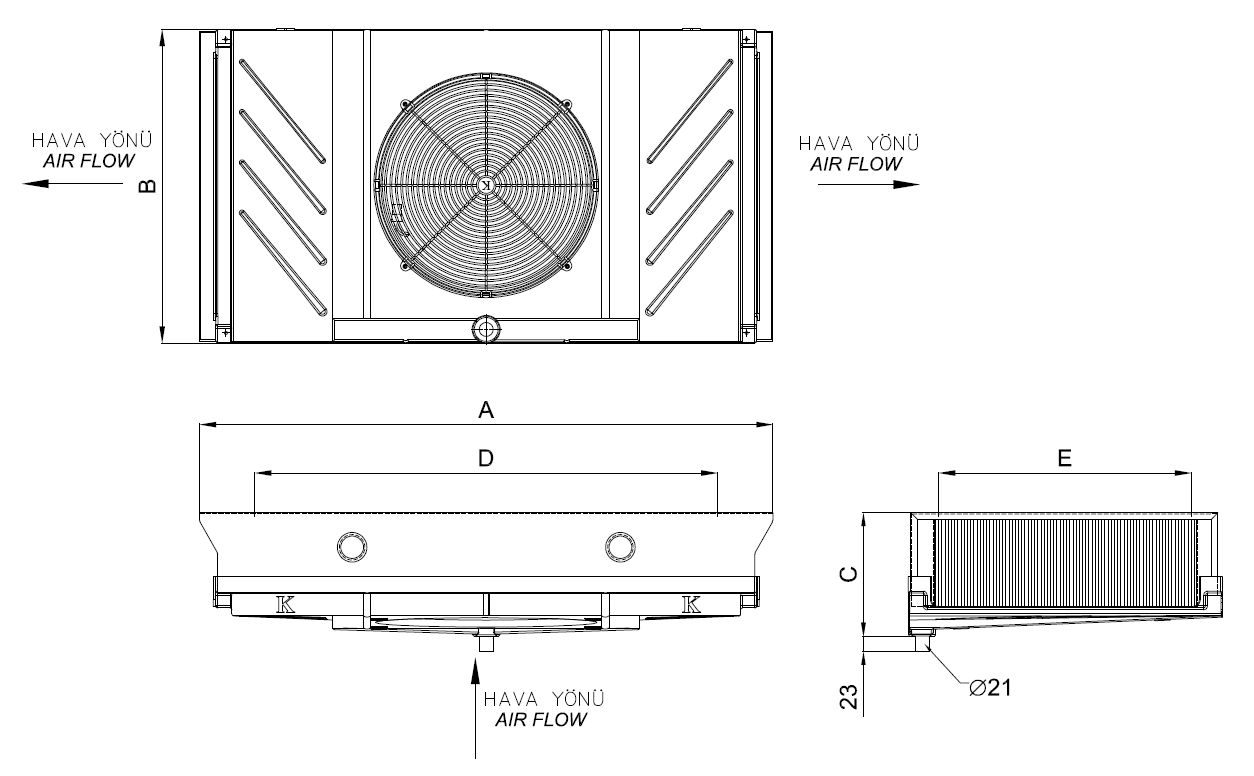

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	645 mm
B	Sub-dimension B	385 mm
C	Sub-dimension C	155 mm
D	Sub-dimension D	595 mm
E	Sub-dimension E	262 mm
	Length (overall)	645 mm
	Width / Depth	385 mm
	Height (overall)	155 mm
Wt	Weight	9.0 kg
