Overview

Dimensions

1245 × 415 × 145 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

S4E300-AS72-37

Diameter

300 mm

Count

2

RPM

1380

Voltage

230 V

Phase

1-phase

Type

—

Dimensions

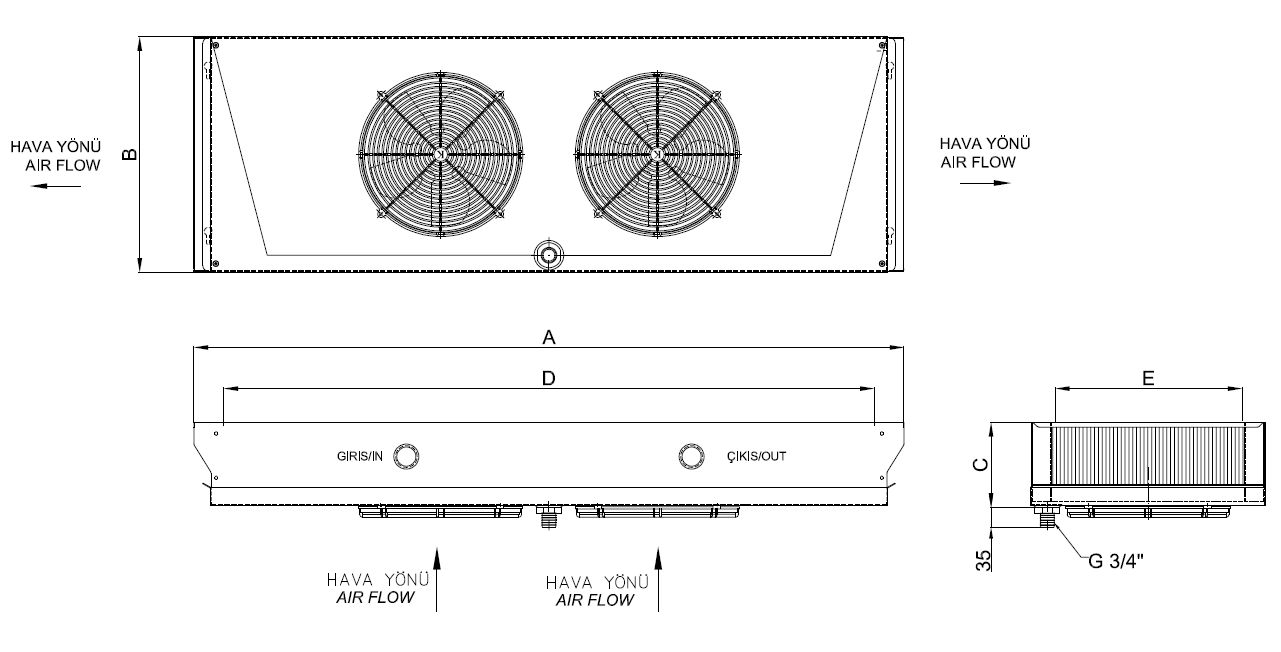

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	1245 mm
B	Sub-dimension B	415 mm
C	Sub-dimension C	145 mm
D	Sub-dimension D	1195 mm
E	Sub-dimension E	290 mm
	Length (overall)	1245 mm
	Width / Depth	415 mm
	Height (overall)	145 mm
Wt	Weight	13.0 kg
