Overview

Dimensions

1205 × 465 × 215 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

—

Diameter

—

Count

3

RPM

—

Voltage

230 V

Phase

—

Type

—

Dimensions

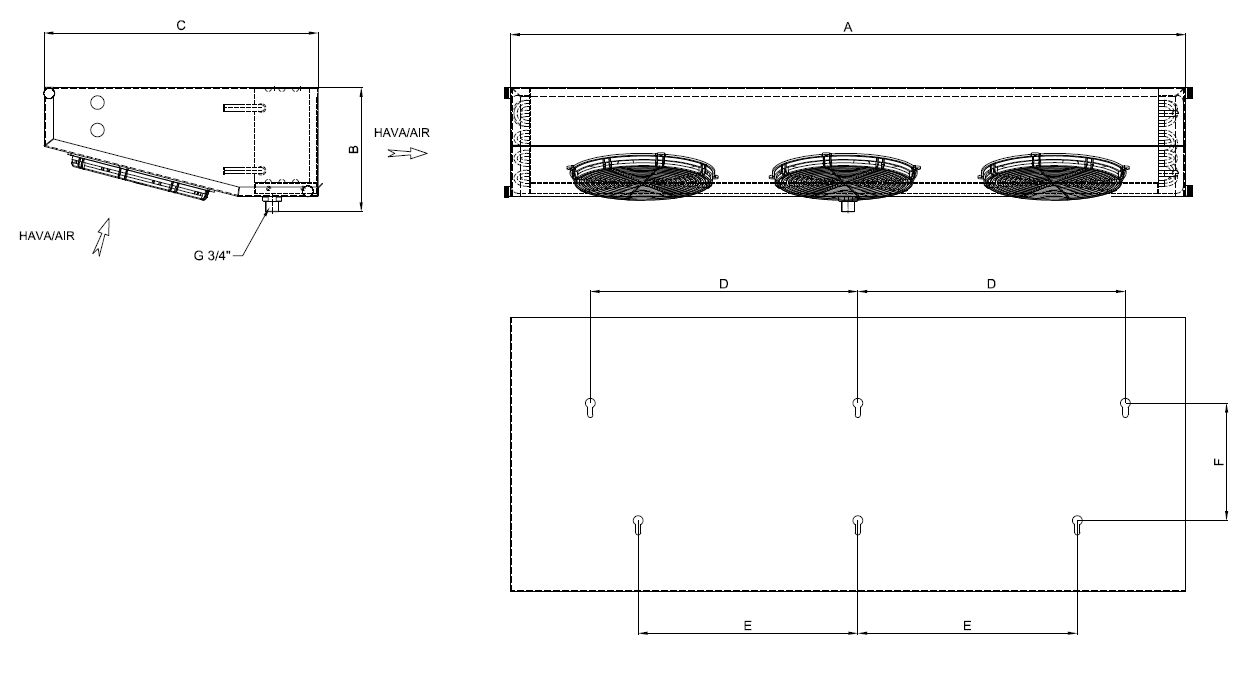

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	1205 mm
B	Sub-dimension B	215 mm
C	Sub-dimension C	465 mm
D	Sub-dimension D	441 mm
E	Sub-dimension E	365 mm
F	Sub-dimension F	187 mm
	Length (overall)	1205 mm
	Width / Depth	465 mm
	Height (overall)	215 mm
Wt	Weight	12.0 kg
