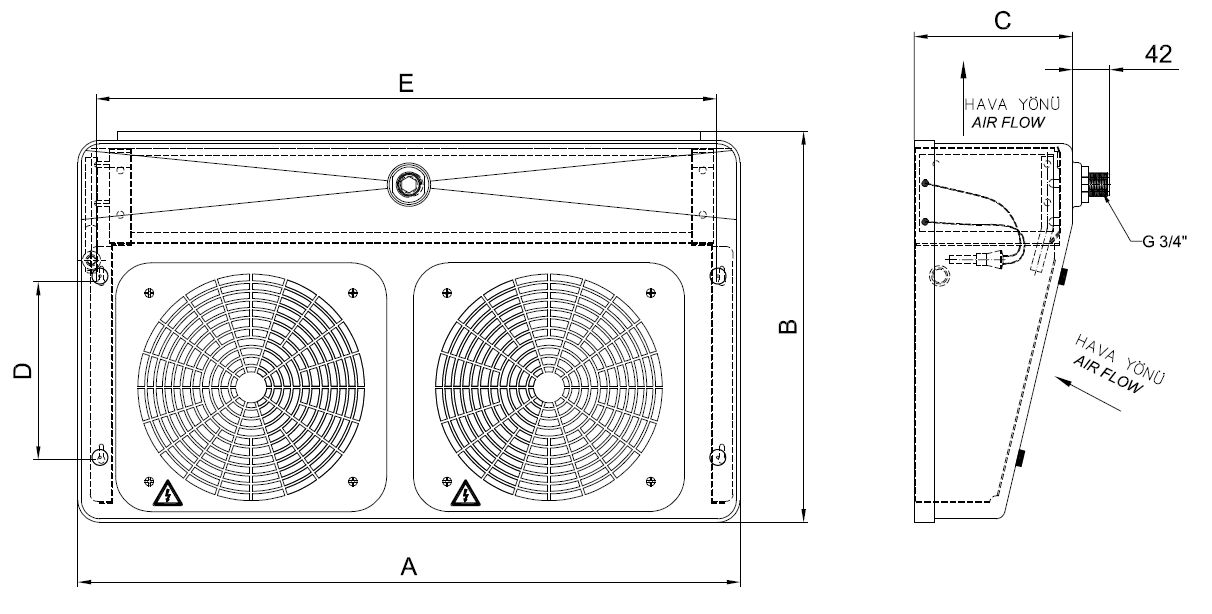

Dimension drawing β all measurements in mm
| Ref | Dimension | Value |
|---|---|---|
| A | Sub-dimension A | 750 mm |
| B | Sub-dimension B | 440 mm |
| C | Sub-dimension C | 180 mm |
| D | Sub-dimension D | 200 mm |
| E | Sub-dimension E | 698 mm |
| Length (overall) | 750 mm | |
| Width / Depth | 440 mm | |
| Height (overall) | 180 mm | |
| Wt | Weight | 7.0 kg |
