Overview

Dimensions

1110 × 440 × 180 mm

Connections

—

Materials

Copper tubes, Aluminium fins

Fan

Model

S4E400-AP02-24

Diameter

400 mm

Count

3

RPM

1430

Voltage

230 V

Phase

1-phase

Type

—

Dimensions

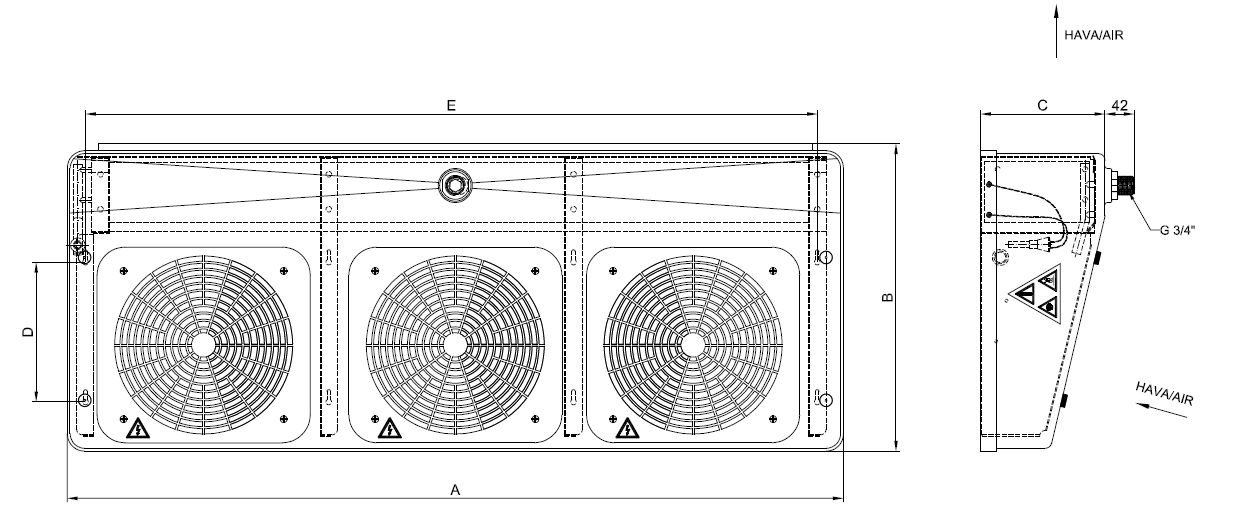

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	1110 mm
B	Sub-dimension B	440 mm
C	Sub-dimension C	180 mm
D	Sub-dimension D	200 mm
E	Sub-dimension E	1047 mm
	Length (overall)	1110 mm
	Width / Depth	440 mm
	Height (overall)	180 mm
Wt	Weight	9.0 kg
