Overview

Dimensions

390 × 80 × 480 mm

Connections

6.1 mm in / 6.1 mm out

Materials

Copper tubes, Aluminium fins

Fan

Model

FN050-VD_.41._7P1

Diameter

500 mm

Count

2

RPM

940

Voltage

230 V

Phase

3-phase

Type

—

Dimensions

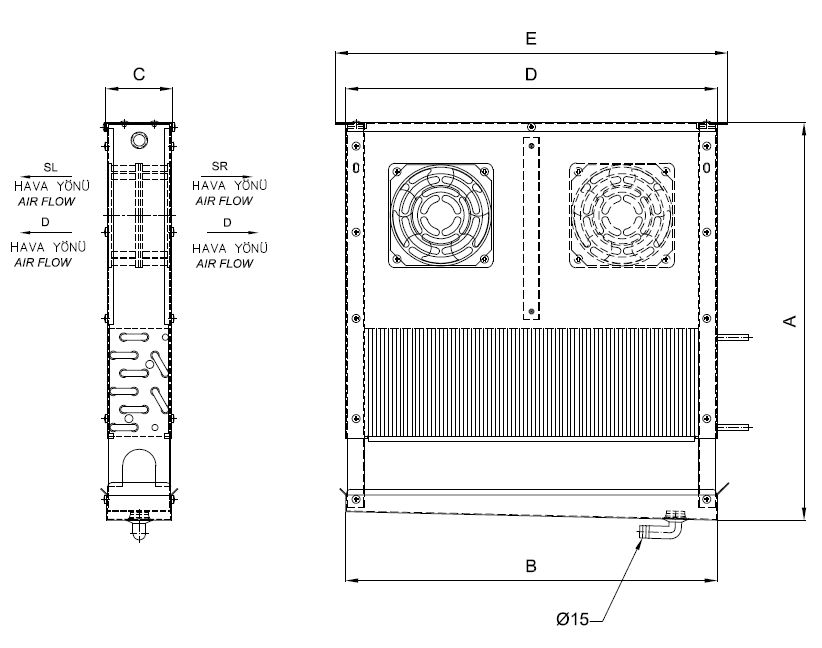

Dimension drawing — all measurements in mm

Ref	Dimension	Value
A	Sub-dimension A	480 mm
B	Sub-dimension B	365 mm
C	Sub-dimension C	80 mm
D	Sub-dimension D	365 mm
E	Sub-dimension E	390 mm
	Length (overall)	390 mm
	Width / Depth	80 mm
	Height (overall)	480 mm
Wt	Weight	3.0 kg
