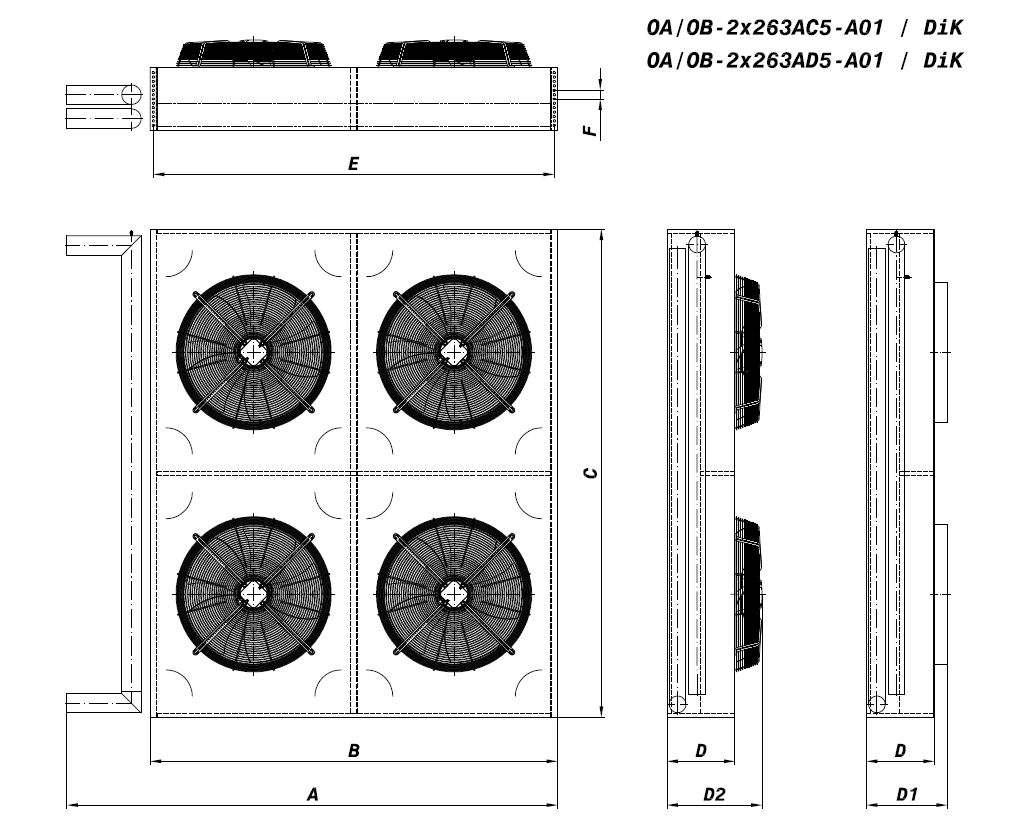

Dimension drawing β all measurements in mm
| Ref | Dimension | Value |
|---|---|---|
| A | Sub-dimension A | 2240 mm |
| B | Sub-dimension B | 1860 mm |
| C | Sub-dimension C | 2230 mm |
| D | Sub-dimension D | 290 mm |
| E | Sub-dimension E | 1830 mm |
| F | Sub-dimension F | 40 mm |
| Length (overall) | 2240 mm | |
| Width / Depth | 415 mm | |
| Height (overall) | 2230 mm | |
| Wt | Weight | 392.0 kg |
