Overview

Dimensions

—

Suction

2"5/8

Liquid

1"1/8

Discharge

1"3/8

Number of compressors

2

Application

N

Family / Range

Khufu ModularRack

Manufacturer

Bitzer

Compressors

Number of compressors

2

R404A compressor

4GE-23Y

R22 compressor

—

Common code

4GE-23Y

Manufacturer

Bitzer

Pipework

Suction PR1

2"5/8

Liquid PR1

1"1/8

Discharge

1"3/8

Suction PR2

2x2"1/8

Liquid PR2

2x7/8"

Suction PR3

-

Liquid PR3

-

Electrical

Max current

57.68 A

Start current

186.84 A

Dimensions

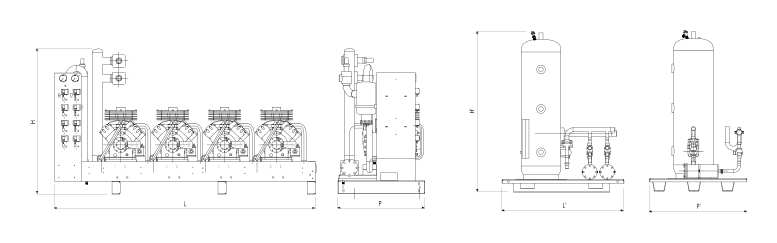

Dimension drawing — all measurements in mm

Ref	Dimension	Value
L	Length (overall)	1915 mm
P	Width / Depth	800 mm
H	Height (overall)	1500 mm
Wt	Weight	610.0 kg
