Overview

Dimensions

—

Suction

2"5/8

Liquid

1"1/8

Discharge

1"3/8

Number of compressors

5

Application

N

Family / Range

Hatshepsut ScrollRack

Manufacturer

Copeland

Compressors

Number of compressors

5

R404A compressor

ZF24K4E-TWD

R22 compressor

-

Common code

ZF24K4E

Manufacturer

Copeland

Pipework

Suction PR1

2"5/8

Liquid PR1

1"1/8

Discharge

1"3/8

Suction PR2

2x2"1/8

Liquid PR2

2x7/8"

Suction PR3

-

Liquid PR3

-

Electrical

Max current

62.5 A

Start current

149.5 A

Dimensions

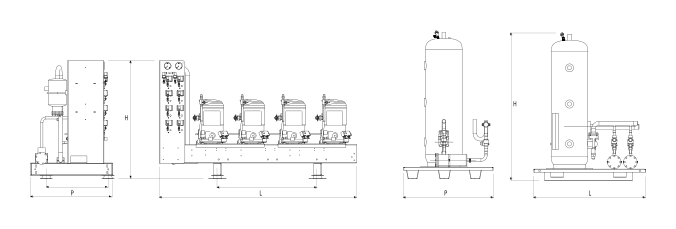

Dimension drawing — all measurements in mm

Ref	Dimension	Value
L	Length (overall)	3115 mm
P	Width / Depth	800 mm
H	Height (overall)	1500 mm
Wt	Weight	820.0 kg
