Brine cooler EA-GA-835BE7-A21 C
Defrost: None
Product code: EA-GA-835BE7-A21 C
- Cooling capacity i
- 26.65 kW
- Air flow
- 16,335 m³/h
- Fin spacing
- 7.0 mm
- Air throw
- 15 m
- Fans
- 8 × ⌀350 mm
Nominal conditions: ethylene glycol 30 % −10 → −7 °C, air inlet 0 °C, relative humidity 85 %
Data
| Air flow | 16,335 m³/h |
|---|---|
| Air throw | 15 m |
| External surface | 101.2 m² |
| Inner volume | 38.8 dm³ |
| Fin spacing | 7.0 mm |
| Fin material | Aluminium |
| Net weight | 210 kg |
| Quantity | 8 |
|---|---|
| Diameter | 350 mm |
| Speed | 1,340 rpm |
| Power | 1,320 W |
| Supply | 230V/1Ph/50Hz |
| Motor type | AC |
| Poles | 4 |
| Sound pressure | 56.0 dB(A) |
|---|---|
| Sound power | 79.0 dB(A) |
| Energy class | E |
| Inlet | 1 1/2" |
|---|---|
| Outlet | 1 1/2" |
| EA-GA-835BE7-A21 C | None |
|---|
Performance
ΔT (air inlet − fluid inlet) must be within 6–12 K (fluid outlet = inlet + 3 K); air inlet -25…10 °C. Points below the fluid's freezing point are not rated.
ETHYLENE GLYCOL 30% -10 → -7 °C, air inlet 0 °C (ΔT 10 K)
- Cooling capacity · Single phase
- 26.646 kW Sensible capacity 19.341 kW Fluid flow 8.42 m³/h Pressure drop 51.7 kPa
Cooling capacity [kW]: Air inlet × ΔT (air − fluid inlet), fluid range 3 K
ETHYLENE GLYCOL 30%; rows: ΔT = air inlet − fluid inlet [K], outlet = inlet + 3 K; columns: air inlet temperature. The highlighted cell is the nominal point. "—": not rated by the manufacturer.
≈ 1.23 estimate — vendor data irregular here
Single phase
| ΔT [K] \ air [°C] | -25 | -20 | -15 | -10 | -5 | 0 | 5 | 10 |
|---|---|---|---|---|---|---|---|---|
| 6 | not rated | not rated | not rated | not rated | 7.98 | 7.56 | 7.57 | ≈ 7.53 |
| 8 | not rated | not rated | not rated | not rated | 12.95 | ≈ 12.16 | ≈ 11.88 | ≈ 22.67 |
| 10 | not rated | not rated | not rated | not rated | ≈ 18.09 | 26.65 | ≈ 30.59 | 34.21 |
| 12 | not rated | not rated | not rated | not rated | not rated | 36.65 | 40.60 | 44.72 |
Nominal rating
Nominal conditions: ethylene glycol 30 % −10 → −7 °C, air inlet 0 °C, relative humidity 85 %
| Fan connection | Cooling capacity [kW] | Fluid flow [m³/h] | Pressure drop [kPa] |
|---|---|---|---|
| Single phase | 26.646 | 8.42 | 51.7 |

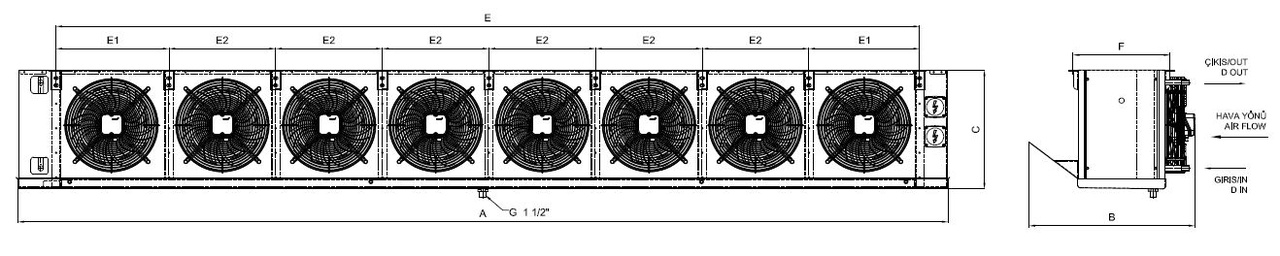

Dimensions
| A | 4457 mm |
|---|---|
| B | 730 mm |
| C | 530 mm |
| F | 560 mm |
| E1 | 518 mm |
| E2 | 500 mm |
| E | 4035 mm |
| D IN | 1 1/2" |
| D OUT | 1 1/2" |
| Length | 4457 mm |
|---|---|
| Width | 730 mm |
| Height | 530 mm |
