KARBOX 20CSV-263-C06 C
71.96 kW
Condenser KARBOX 20CSV-263-C19 C
Defrost: None
Product code: KARBOX 20CSV-263-C19 C
- Heat rejection i
- 87.12 kW
- Air flow
- 24,147 m³/h
- Fin spacing
- 2.1 mm
- Fans
- 2 × ⌀630 mm
Nominal conditions (EN 327): air inlet 25 °C, condensing temperature 40 °C (ΔT 15 K), gas inlet superheat 26 K, no subcooling, relative humidity 50 %
Data
| Air flow | 24,147 m³/h |
|---|---|
| External surface | 190.7 m² |
| Inner volume | 16.1 dm³ |
| Fin spacing | 2.1 mm |
| Fin material | Aluminium |
| Net weight | 320 kg |
| Quantity | 2 |
|---|---|
| Diameter | 630 mm |
| Speed | 1,330 rpm |
| Power | 2,500 W |
| Supply | 400V/3Ph/50Hz |
| Motor type | AC |
| Poles | 4 |
| Sound pressure | 55.0 dB(A) |
|---|---|
| Sound power | 87.0 dB(A) |
| Energy class | D |
| Inlet | Ø28 |
|---|---|
| Outlet | Ø22 |
| KARBOX 20CSV-263-C19 C | None |
|---|
Performance
ΔT (condensing − air inlet) must be within 8–20 K; air inlet 25…50 °C.
R404A, dew point, air inlet 25 °C, ΔT 15 K (condensing 40 °C); Vendor rating (gas inlet superheat 26 K, no subcooling)
- Heat rejection · High speed (Δ)
- 88.177 kW Refrigerant flow 2,065 kg/h
- Heat rejection · Low speed (Y)
- 73.904 kW Refrigerant flow 1,731 kg/h
Heat rejection at ΔT 15 K [kW]
R404A, Vendor rating (gas inlet superheat 26 K, no subcooling); one row per fan connection; columns: air inlet temperature. The highlighted cell is the nominal point. "—": not rated by the manufacturer.
≈ 1.23 estimate — vendor data irregular here
| Fan connection \ air [°C] | 25 | 30 | 35 | 40 | 45 | 50 |
|---|---|---|---|---|---|---|
| High speed (Δ) | 88.18 | 88.23 | 88.48 | 89.02 | 89.95 | 91.55 |
| Low speed (Y) | 73.90 | 73.89 | 74.04 | 74.42 | 75.12 | 76.36 |
Nominal rating
Nominal conditions (EN 327): air inlet 25 °C, condensing temperature 40 °C (ΔT 15 K), gas inlet superheat 26 K, no subcooling, relative humidity 50 %
| Fan connection | Heat rejection [kW] |
|---|---|
| High speed (Δ) | 88.177 |
| Low speed (Y) | 73.904 |

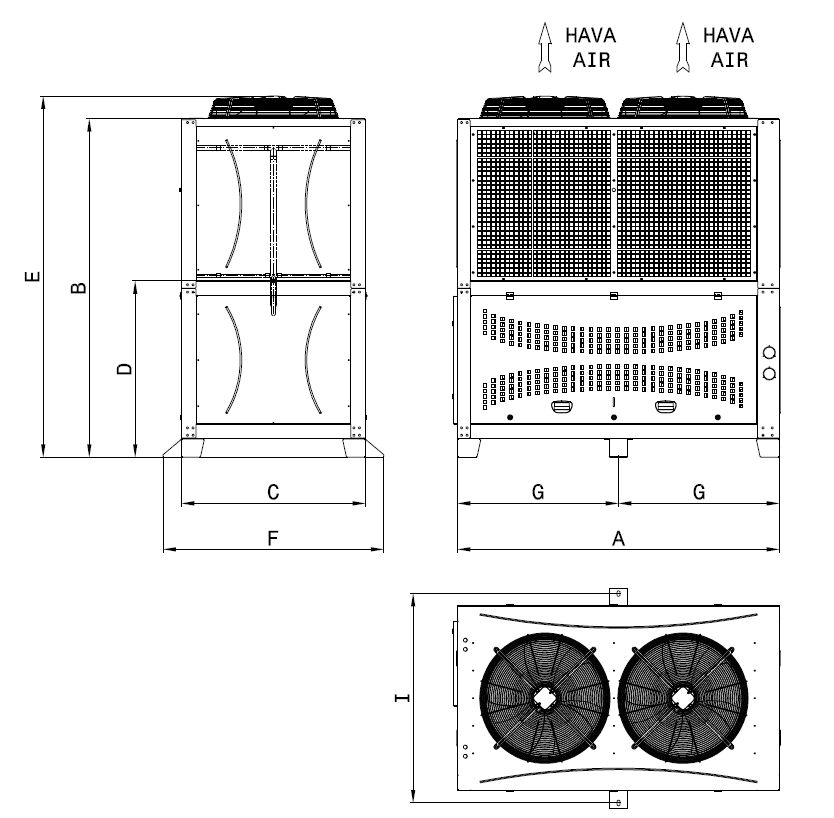

Dimensions
| A | 1750 mm |
|---|---|
| B | 1840 mm |
| C | 1000 mm |
| F | 1200 mm |
| G | 875 mm |
| E | 1965 mm |
| I | 1140 mm |
| D | 960 mm |
| D IN | Ø28 |
| D OUT | Ø22 |
| Length | 1750 mm |
|---|---|
| Width | 1120 mm |
| Height | 1865 mm |
Downloads
Ask about product
Our engineers answer with a selection for your conditions.
The data are illustrative and may change without notice. Capacities are interpolated from the manufacturer's rating grid; points the manufacturer did not rate are shown as "not rated" and never estimated.
