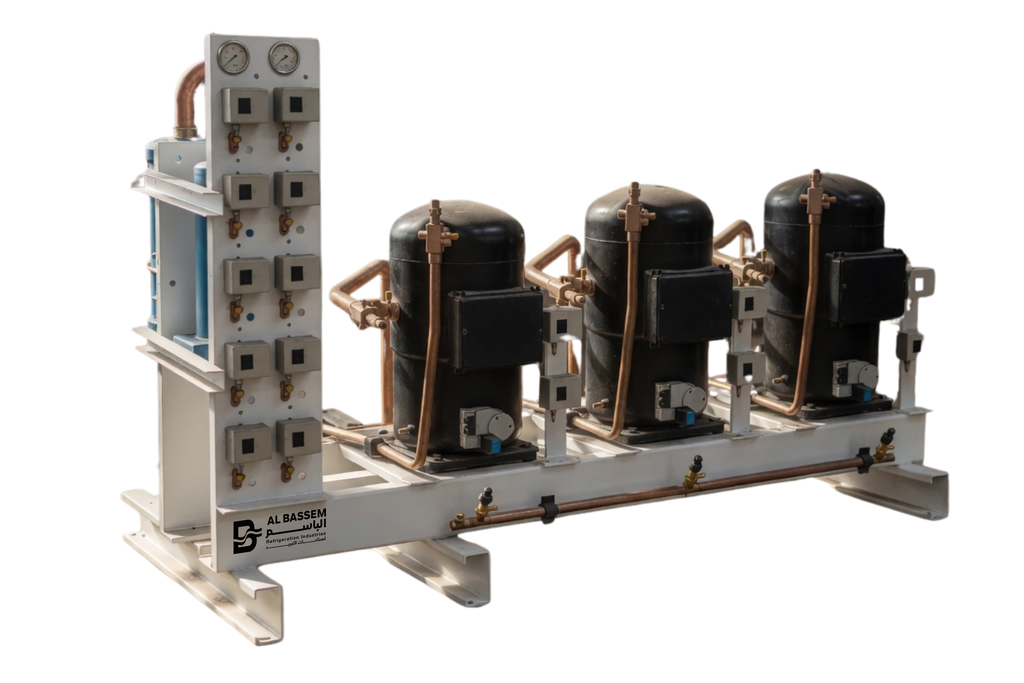

Hatshepsut ScrollRack
2 lines. Filter by parameters or enter the capacity you need at your conditions.
Model nomenclature
How to read the model codes of this series, with an example.
-
A
Series BHSR = Hatshepsut ScrollRack
-
B
Number of compressors — Number of identical compressors on the rack (5 to 6).
-
C
Application — N low temperature · P medium / high temperature · PH high temperature N = Low temperatureP = Medium / high temperature
-
D
Compressor model — Model of the compressors fitted (all compressors of a rack are the same model); an 'EVI' tail marks enhanced vapour injection.
| Model | Refrigerating capacity [kW] | Absorbed power [kW] | COP | Compressors | Receiver [l] | Compare |
|---|---|---|---|---|---|---|
| BHSR-5N-ZF24 | 23.20 kW Power 22.60 kW COP 1.03 | 22.60 | 1.03 | 5 × scroll compressors | 60 | Compare |
| BHSR-5N-ZF33 | 31.90 kW Power 29.20 kW COP 1.09 | 29.20 | 1.09 | 5 × scroll compressors | 60 | Compare |
| BHSR-6N-ZF33 | 38.30 kW Power 35.00 kW COP 1.09 | 35.00 | 1.09 | 6 × scroll compressors | 120 | Compare |
| BHSR-5N-ZF40 | 39.40 kW Power 37.00 kW COP 1.06 | 37.00 | 1.06 | 5 × scroll compressors | 150 | Compare |
| BHSR-6N-ZF40 | 47.30 kW Power 44.50 kW COP 1.06 | 44.50 | 1.06 | 6 × scroll compressors | 150 | Compare |
| BHSR-5N-ZF48 | 47.60 kW Power 48.50 kW COP 0.98 | 48.50 | 0.98 | 5 × scroll compressors | 150 | Compare |
| BHSR-6N-ZF48 | 57.10 kW Power 58.20 kW COP 0.98 | 58.20 | 0.98 | 6 × scroll compressors | 150 | Compare |
| BHSR-5P-ZB50 | 57.90 kW Power 28.60 kW COP 2.02 | 28.60 | 2.02 | 5 × scroll compressors | 60 | Compare |
| BHSR-5P-ZB76 | 87.10 kW Power 40.70 kW COP 2.14 | 40.70 | 2.14 | 5 × scroll compressors | 120 | Compare |
| BHSR-6P-ZB76 | 104.50 kW Power 48.90 kW COP 2.14 | 48.90 | 2.14 | 6 × scroll compressors | 120 | Compare |
| BHSR-5P-ZB95 | 105.90 kW Power 52.50 kW COP 2.02 | 52.50 | 2.02 | 5 × scroll compressors | 120 | Compare |
| BHSR-5P-ZB114 | 125.60 kW Power 63.00 kW COP 1.99 | 63.00 | 1.99 | 5 × scroll compressors | 150 | Compare |
| BHSR-6P-ZB95 | 127.00 kW Power 63.00 kW COP 2.02 | 63.00 | 2.02 | 6 × scroll compressors | 150 | Compare |
| BHSR-6P-ZB114 | 150.70 kW Power 75.60 kW COP 1.99 | 75.60 | 1.99 | 6 × scroll compressors | 150 | Compare |
| BHSR-5N-ZF48-EVI | — Performance on request | — | — | 5 × scroll compressors | 150 | Compare |
| BHSR-6N-ZF48-EVI | — Performance on request | — | — | 6 × scroll compressors | 150 | Compare |
Downloads
Every rack has a product datasheet (PDF) with its data, the standard points and the capacity, power and COP tables: open a rack and choose Product datasheet.
Ask about product
Our engineers answer with a selection for your conditions.
The data are illustrative and may change without notice. Capacities are interpolated from the manufacturer's rating grid; points the manufacturer did not rate are shown as "not rated" and never estimated.
