Unit cooler ED-263AE4-C27 C

Unit cooler ED-263AE4-C27 C
Illustrative photo

Producer: Karyer · Line: ED (General)

Product code: ED-263AE4-C27 C

Cooling capacity i
35.50 kW
Air flow
16,729 m³/h
Fin spacing
4.6 mm
Air throw
16 m
Fans
2 × ⌀630 mm

Nominal conditions: refrigerant R404A, evaporation (dew point) −8 °C, inlet air 0 °C, humidity 85 %

Ask about product Add to compare Product datasheet (PDF)

Data

Evaporator
Air flow 16,729 m³/h
Air throw 16 m
External surface 240.6 m²
Inner volume 49.1 dm³
Fin spacing 4.6 mm
Fin materialAluminium
Net weight 269 kg
Fans
Quantity 2
Diameter 630 mm
Speed 890 rpm
Power 1,200 W
Supply 400V/3Ph/50Hz
Motor type AC
Poles 6
Acoustic
Sound pressure 53.0 dB(A)
Sound power 76.1 dB(A)
Energy class C
Connections
Inlet Ø35
Outlet Ø54
Defrost
ED-263AE4-C27 C None

Performance

No glide: dew, mid and bubble point give the same rating.

TD (air − evaporating) must be within 4–10 K; air inlet −40…+20 °C.

R404A, dew point -8 °C, air inlet 0 °C (TD 8 K)

High speed (Δ)
34.120 kW
Low speed (Y)
28.002 kW

Capacity matrix [kW]

R404A, Dew point; rows: TD = air inlet − evaporating temperature, columns: air inlet temperature. The highlighted cell is the nominal point (SC2). "—": not rated by the manufacturer.

High speed (Δ)

TD [K] \ air [°C] -35-30-25-20-15-10-502510121520
4 14.09 14.13 14.23 14.36 14.42 14.42 14.37 14.67 15.61 16.96 16.67 16.57 16.44 16.21
5 18.15 18.39 18.64 18.90 18.98 18.99 18.91 19.18 20.38 22.10 21.60 21.43 21.18 20.82
6 22.02 22.58 23.10 23.57 23.80 23.86 23.76 23.95 25.42 27.54 26.83 26.56 26.17 25.56
7 25.66 26.51 27.38 28.14 28.58 28.77 28.73 28.97 30.72 33.27 32.34 31.98 31.43 30.56
8 28.81 30.16 31.40 32.51 33.24 33.68 33.83 34.12 36.17 39.18 38.09 37.63 36.95 35.83
9 31.71 33.50 35.14 36.59 37.57 38.15 38.42 38.85 41.24 44.75 43.69 43.22 42.52 41.25
10 34.37 36.65 38.74 40.56 41.81 42.61 43.00 43.52 46.20 50.11 48.95 48.41 47.60 46.21

Low speed (Y)

TD [K] \ air [°C] -35-30-25-20-15-10-502510121520
4 12.14 12.12 12.17 12.28 12.32 12.31 12.21 12.53 13.36 14.53 14.29 14.21 14.11 13.95
5 15.61 15.64 15.79 15.97 16.04 16.02 15.86 16.22 17.25 18.72 18.31 18.16 17.95 17.64
6 18.96 19.24 19.54 19.83 19.94 19.93 19.71 20.05 21.28 23.07 22.34 22.10 21.75 21.20
7 22.19 22.74 23.27 23.73 23.96 23.99 23.74 23.91 25.34 27.45 26.61 26.28 25.78 24.95
8 25.24 26.13 26.83 27.53 27.92 28.05 27.79 28.00 29.66 32.07 31.08 30.64 30.00 28.94
9 28.07 29.17 30.27 31.27 31.91 32.14 31.94 32.18 34.07 36.81 35.67 35.15 34.36 33.09
10 30.45 32.02 33.46 34.73 35.53 35.97 35.94 36.29 38.47 41.62 40.35 39.75 38.82 37.35

Standard ratings (EN 328 / Eurovent)

Standard condition Air inlet [°C] TD [K] High speed (Δ) [kW]Low speed (Y) [kW]
SC1 10 10 48.94540.347
SC2 0 8 34.12028.002
SC3 -18 7 28.34823.852
SC4 -25 6 23.10319.541
SC5 -34 6 22.17119.048

Dimensions

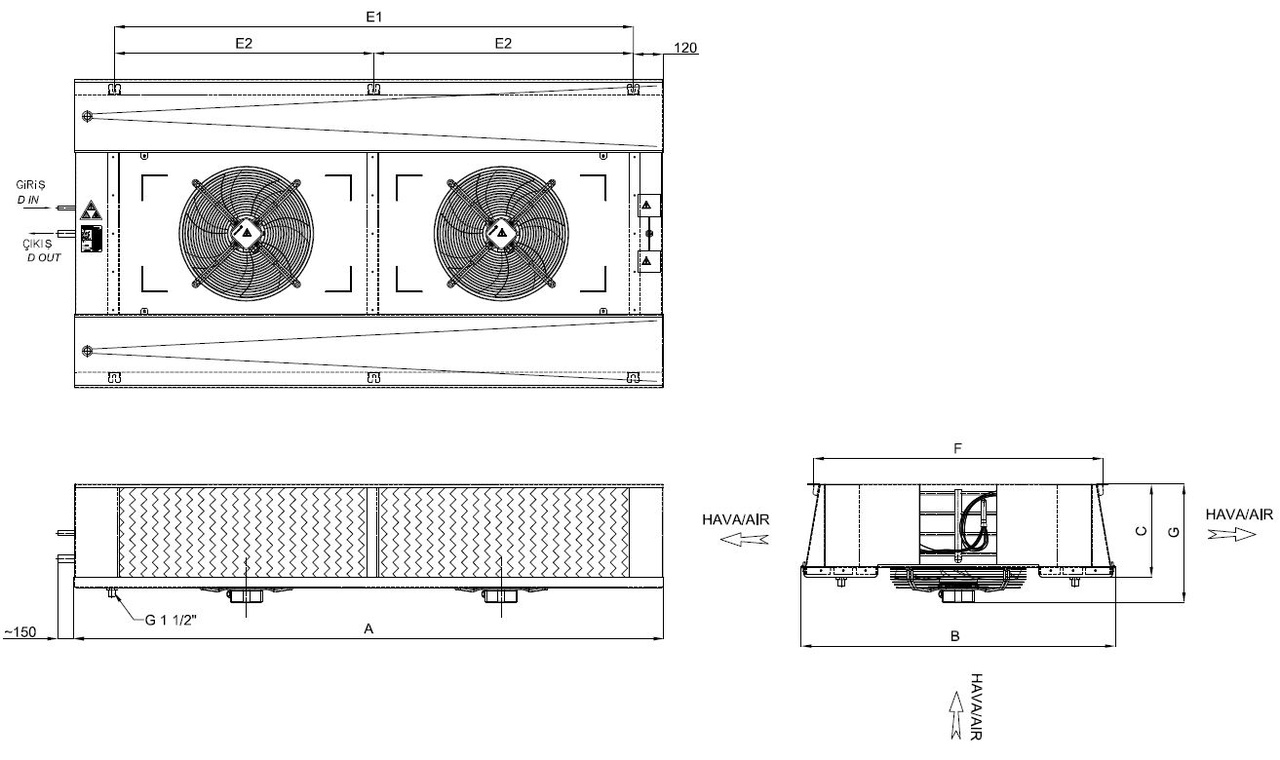

Dimension drawing of ED-263AE4-C27 C
Dimension drawing
Dimensions as drawn
A 2768 mm
B 1720 mm
C 455 mm
F 1645 mm
G 483 mm
E1 2435 mm
E2 1218 mm
D IN 1 x Ø35
D OUT 1 x Ø54
Overall [mm]
Length 2768 mm
Width 1720 mm
Height 483 mm

Downloads

Ask about product

Our engineers answer with a selection for your conditions.

Send enquiry

Thank you. We received your enquiry and will get back to you shortly.

The data are illustrative and may change without notice. Capacities are interpolated from the manufacturer's rating grid; points the manufacturer did not rate are shown as "not rated" and never estimated.
